概述：原理 principle★該機彩全封閉形式，所有部件均彩不銹鋼制造，配有三極凈化裝置，過濾后的空氣達十萬級要求。簡體與頂部裝有冷壁裝置，使壁溫<80報氏度，干燥塔內裝有氣刷掃塔裝置，經該機干燥后的中藥浸膏粉，不會出現焦化變質現象，大大嗇了收粉率（達95%以上），而且不會產生混藥現象和粘壁現象。

文章詳情

原理 principle

★該機彩全封閉形式，所有部件均彩不銹鋼制造，配有三極凈化裝置，過濾后的空氣達十萬級要求。簡體與頂部裝有冷壁裝置，使壁溫<80報氏度，干燥塔內裝有氣刷掃塔裝置，經該機干燥后的中藥浸膏粉，不會出現焦化變質現象，大大嗇了收粉率（達95%以上），而且不會產生混藥現象和粘壁現象。< p="">

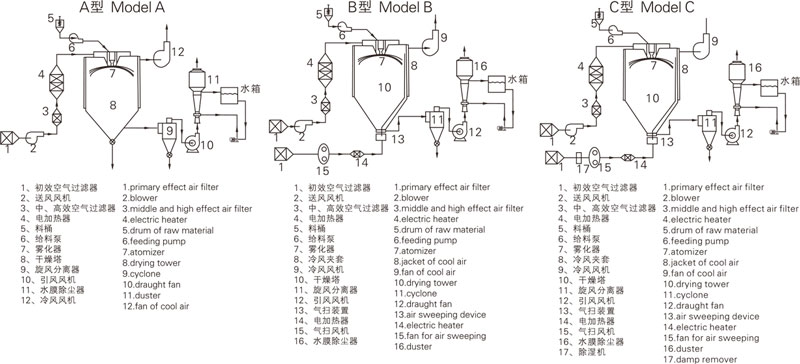

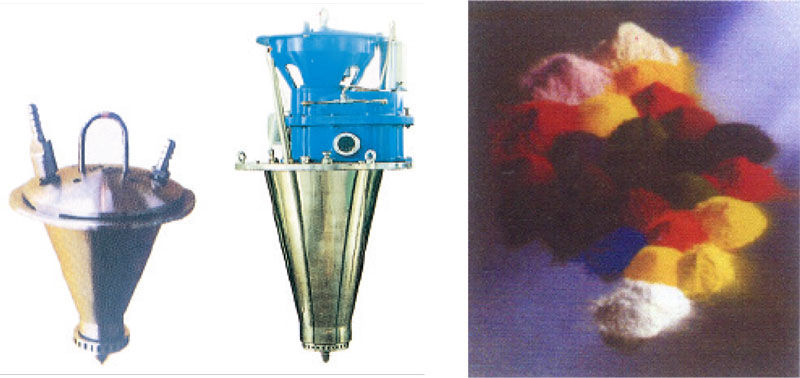

★基本原理：中藥浸膏高速離心式噴霧裝置是離心式噴霧干燥技術在特定物料干燥中的應用，也是利用高速離心式霧化器使用權物料分散成霧狀，與熱空氣充分接觸，完成瞬間干燥，形成粉狀成品的干燥裝置。

★中藥浸膏噴霧干燥機是專門用來解決中藥浸膏和植物撮液的噴霧干燥機。它解決了物料在原LPG高速噴霧干燥機在中藥中藥浸膏干燥中出現的以下情況：

1、物料粘壁、收粉率低；

2、物料在壁上停滯不前留時間長，產生物料的焦化變質現象；

3、難以清洗，不符合GMP要求；

4、主量低：LPG-150型噴霧干燥機，其產量只能處理50-60kg/h料液。

★鑒于以上狀況，我廠根據中藥浸膏的物料性質與工藝要求設計了中藥浸膏專用干燥機。它解決了歷史上中藥浸膏干燥機難題，干燥后的物料顏色好、不變質、大大提高了工廠的經濟效益，中藥浸膏與LPG高速離心噴霧干燥機相比有以下要求：

1、采用了三級空氣凈化，使進風達到30萬級要求；

2、采用冷壁裝置，使內壁溫度達到80℃，物料在壁上停留也不焦化；

3、整個體積是原LPG標準離心噴霧的3.5倍；

4、采用快開沖洗裝置，適用于多品種生產要求；

5、除塵采用濕式除塵，使粉塵無外出，符合環保要求；

6、采用氣掃裝置，效果更加滿意；

7、提供霧化器2臺，采用變頻調整；

8、采用PLC控制，程控系統屏幕顯示；

9、帶沖洗裝置；

10、采用干空氣密閉輸送。

★The machine adopts full seal from.AII parts are made of stainless steel.lt is equipped with three grades of filter.The filtered air is one hundred thousand grades.The cooling device of wall is installed at the cylinder body.lt makes the wall temperature less than 800C o Air sweeping device is installed inside the drying tower, The product will not be burnt or deteriorated even stays on the way.The collection rate of powder is raised greatly.Moreover will not cause medicine mixed or wall stick Basic Principle:high-speed centrifuge atomizing for the extract of traditional Chinese medicine is an application of centrifuge atomizing technique.lt is an high-speed atomizing dryer.The following problems are solved.

1.Raw material is stick to the wall and the rate of powder collecting is low.

2.Because the staying time of raw material at wall is long,the phenomenon of burnt and degenration can be produced.

3.lt is difficult to clean and can not meet the requirement of GMP.

4.Low in output:Model LPG-150 atomizing centrifuge dryer can process 50-60kg/h of raw material liquid.ln view of this,according to the properties and process requirements of the extract of traditional Chinese medicine,our factory researched and designed the special dryer for the extract of traditional Chinese medicine and won items of china patent,lt solves the historical difficult problems in drying the extract of traditional Chinese medicine.The color of dried raw material is good.The dried raw material does not degenerate.lt raises the economic benefit greatly.Compared to ordinary LPG high-speed atomizing dryer,it has the following features:

(1).Adopted three-grade air filter,the inlet air is one hundred thousand grade.

(2).Adopted wall cooling device,the temperature of inner wall will be on more than 80℃.Even if raw material is stayed on the wall,it will not be burnt.

(3).Its whole volume is 3.5 times of standard LPG high-speed atomizing dryer.

(4).Adopted quick washing device,it is can meet the requirements of production for varieties if products.

(5).Adopted wet-dedusting,there is no powder dust out.lt is in conformity with the requirements of GMP.

(6).Adopted air sweeping device ,the clean effect is satisified.

(7).Equipped with two sets of atomizer and adopted frequency inverter control.

(8).Adopted PLC control and display,and adapted frequency control.

(9).Equipped with washing device on request,

(10).Adopted the seal transport by dry air on request.

特點 Features

★塔體具有冷風夾套；

★塔體上裝有自動振打裝置；

★塔體、管路配有快開清洗孔及排污孔；

★自動控制恒溫加料罐；

★手工高壓洗塔隨機附件；

★與物料接觸的部分采用不銹鋼材料制作(或全不銹鋼制造）

★物料收集采用兩級旋風除塵裝置，或一級旋風除塵器和濕式除塵器；

★進風溫度實現自動控制及連續裝置；

★配有氣掃裝置。

★Tower body has air cooled jacket.

★Tower body is equipped with automatic vibration device.

★Tower body and pipe line have cleaning hole and sewage discharge hole that can open quickly.

★Thermostat feeding tank on request.

★Mannal high pressure washing machine on request.

★The parts that can contact raw material are made of stainless steel (all entirely stainless steel).

★The collecting of raw material adopts two grades cyclone or one-grade cyclone and one-grade wet-method-deduster.

★The temperature of inlet air can be controlled automatically and continuously.

★Equipped with air sweeping device on request.

型號 spec		ZPG-5	ZPG-10	ZPG-25	ZPG-50	ZPG-80	ZPG-100	ZPG-150	ZPG-200	ZPG-300
水份蒸發量 evaporation capacity (kg/h)		5	10	25	50	80	100	150	20	300
料液處理量 process amount of material liquid (kg/h)		6-7	12-14	25-34	50-68	80-108	100-135	150-203	200-270	300-406
成品含量 output of finished product (kg/h)		1-2	2-4	4.8-7.2	9.2-14	14.8-22.4	18.4-28	24-42	36.8-56.4	55-85
濕物料含固量 solid content of material liquid (%)		18-25
成品含水率 moisture content of finished product (%)		3-5
電功率 electric power (kw)		36	45	63	99	132	153	204	246	330
加熱源 heat source		蒸汽加電 Steam pius electricity
產品捕集方式及效率 collecting method of product and its efficiency		兩級旋風除塵器或一級旋風除塵器及一級濕式除塵器≥95%    Two-grade cyclone or one-grade cyclone and one-grade web-method dedusted of 95%
自控儀表 automatic control meters and instruments		熱風溫度及排風溫度指標，自動調節溫控儀    indicator of not air and exhaust air temperature
進風溫度 temperature of air inlet (℃)		150-200
出風溫度 temperature of air outlet (℃)		80-100
外形尺寸 overal diimensions (mm)	長L	5000	5500	7000	8000	9800	11000	12200	14100	15000
	寬W	3000	3500	4000	5000	5700	6200	7000	7800	9000
	高H	4500	4600	5200	6500	7600	8100	9000	9850	11100

所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
