XLB旋轉流化床制丸(粒)包衣機─【佳發制粒干燥】

2023-01-17 佳發制粒干燥 0 百度一下

適合行業	制粒設備
發布作者	佳發制粒干燥
最近更新	2023-01-17 15:57:49

概述：應用概述 General of applications★粉末或者母粒在旋轉流化床內，受到環隙空氣浮力，旋轉離心力、自身重力作用，呈環周繩股狀，粘合劑或包衣液噴入料層形成真球度極高的丸粒或連續均勻的衣膜。　★Powder or seed granule in rotated fluid will u

文章詳情

應用概述 General of applications

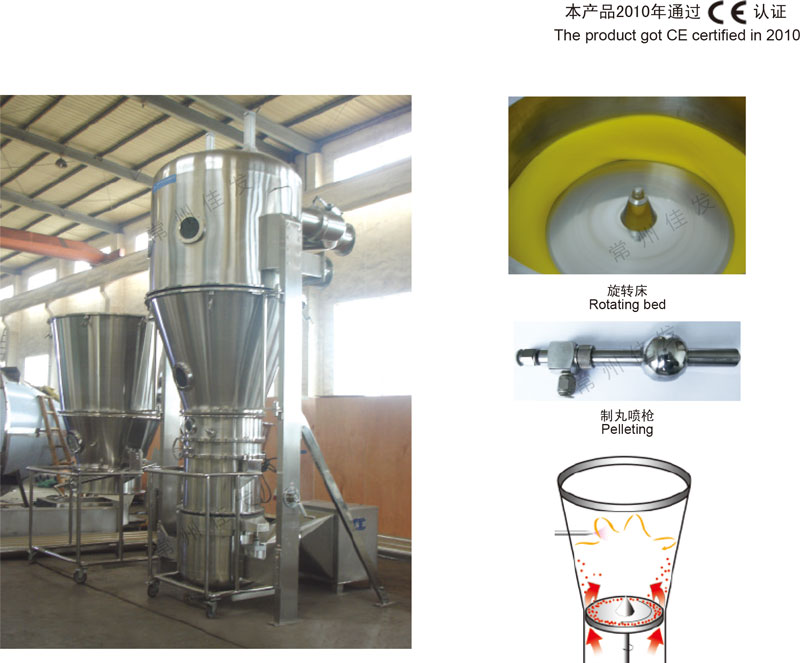

★粉末或者母粒在旋轉流化床內，受到環隙空氣浮力，旋轉離心力、自身重力作用，呈環周繩股狀，粘合劑或包衣液噴入料層形成真球度極高的丸粒或連續均勻的衣膜。　

★Powder or seed granule in rotated fluid will undertaken the action of air flotage force in ring gap, rotating centrifugal force and gravity and appear cycle rope strain shape. Adhesive or coat liquid will be sprayed into the layer of material to form pellet with high degree of ball or continuous and uniform coating film.

設備特點 Features of equipment

★集混合，制丸，制粒，干燥為一體，減少工藝步驟及污染環節，降低勞動強度。

★設備內外表面光潔，無死角，利于清洗，符合“GMP”要求。

★Integrating mixing, pelletizing, granulating and drying in one body, reducing the process of technique and contamination and the workload of workers.

★The surface of the equipment is neat and lubricity inside and outside. It’s free of blind corner and easy to clean and designed by GMP.

項目 ltem 規格 Specification			1.5	10	20	30	60	120
原料容器容積 Container volume		L	5	30	60	105	180	420
投料量 Capacity		kg/批 kg/batch	0.5-1.5	3-10	8-20	10-30	20-60	40-120
旋轉電機功率 Power of rotating motor		kw	0.55	1.5	4	5.5	7.5	11
風機功率 Power of fan		kw	4	5.5	7.5	15	18.5	22
蒸汽 Steam	壓強 Pressure	Mpa	0.4-0.6
蒸汽 Steam	耗量 Consumption	Kg/h	6KW	42	84	166	250	332
壓縮空氣 Compressed air	壓強 Pressure	Mpa	0.6
壓縮空氣 Compressed air	耗量 Consumption	m3/min	0.3	0.6	0.6	1.1	1.8	2.4

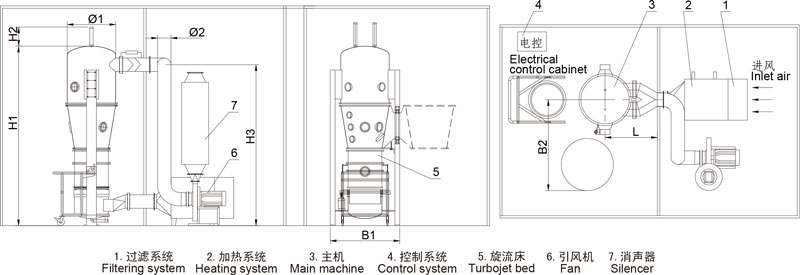

主機尺寸 Installation size for reference		H1(mm)	2600	2250	2850	2850	3300	3500
		H2(mm)		320	490	590	690	790
		H3(mm)		2050	2600	2600	3080	3280
		?1(mm)	400	700	1000	1200	1400	1600
		?2(mm)	180	180	280	280	280	315
		B1(mm)	1650	1160	1460	1660	1860	2060
		B2(mm)		1800	2460	2860	3260	3660
		L(mm)		1250	1530	1650	1650	1750

所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。

All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
